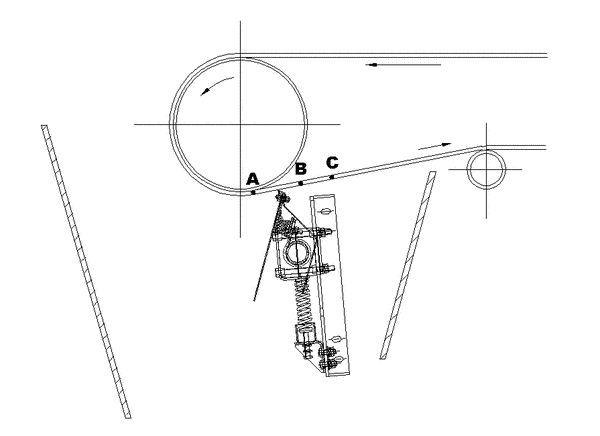

HCP scrapers are placed in the lower belt directly behind the discharge drum. The best mounting position is the position B (approximately 120-150 mm from A, where the conveyor belt leaves the contact with the drums), tighten and vibration-free belt guide provided.
Use our xeperience, especially when space is restricted and critical, sicky bulk material massive cleaning problems prepare, with varying materials, seasonal changes in material consistency, etc.

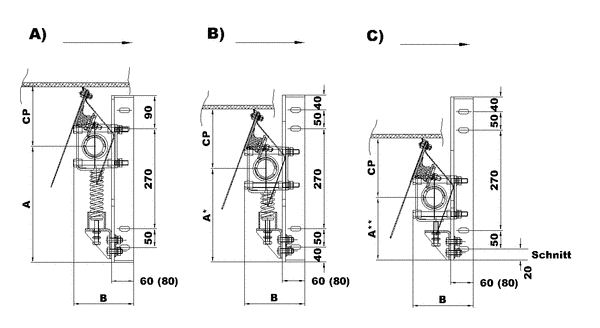

Measure A (installation variant A) when the springs are not under tension and without dead load/spring preload; standard with pressure spring (L=130 m); Measure A* (installation variant B); execution with pressure spring (L=60 mm); Measure A** (installation variant C) without pressure spring.

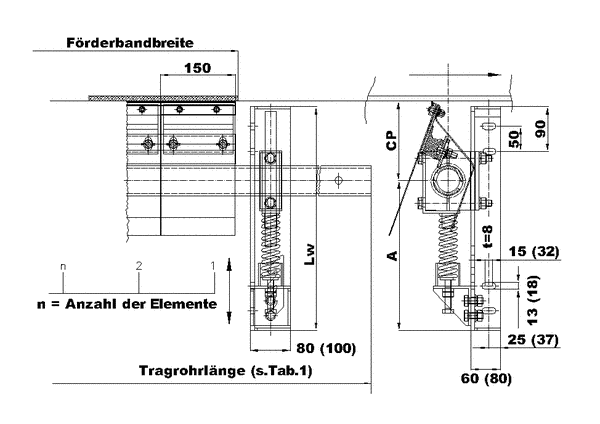

Belt width (mm) | QuantityxWidth of belt cleaner lamellas (mm) | Standard Support tube-length (mm) | D support tube-Ø (mm) | Lw (mm) | A (mm) / A* (mm) / A** (mm) | B (mm) | C3 (mm) | Weigh tot. without Autom.1 (kg) |
---|---|---|---|---|---|---|---|---|
300/400 | 2 x 150 | 1300 | 60,3 | 450 | 290/220/170 | 170 | 166 | 13 |
500 | 3 x 150 | 1500 | 60,3 | 450 | 290/220/170 | 170 | 166 | 16 |
600/650 | 4 x 150 | 1600 | 60,3 | 450 | 290/220/170 | 170 | 166 | 19 |
800 | 5 x 150 | 1750 | 60,3 | 450 | 290/220/170 | 170 | 166 | 22 |
1000 | 6 x 150 | 1900 | 60,3 | 450 | 290/220/170 | 170 | 166 | 25 |
1200 | 7 x 150 | 2200 | 60,3 | 450 | 290/220/170 | 170 | 166 | 28 |
1200 | 8 x 150 | 2200 | 60,3 | 450 | 290/220/170 | 170 | 166 | 30 |
1400 | 9 x 150 | 2350 | 60,3 | 450 | 290/220/170 | 170 | 166 | 33 |
1600 | 10 x 150 | 2500 | 76,1 | 450 | 310/240/190 | 200 | 174 | 60 |
1800 | 11 x 150 | 2800 | 76,1 | 450 | 310/240/190 | 200 | 174 | 64 |
1800 | 12 x 150 | 2800 | 76,1 | 450 | 310/240/190 | 200 | 174 | 69 |
2000 | 13 x 150 | 2950 | 76,1 | 450 | 310/240/190 | 200 | 174 | 74 |
2400 | 14 x 150 | 3100 | 76,1 | 450 | 310/240/190 | 200 | 174 | 78 |
2400 | 15 x 150 | 3400 | 76,1 | 450 | 310/240/190 | 200 | 174 | 85 |
2400 | 15 x 150 | 3700 | 114,3 | 500 | 340/270/220 | 280 | 192 | 125 |
2600 | 16 x 150 | 3800 | 114,3 | 500 | 340/270/220 | 280 | 192 | 129 |
2800 | 17 x 150 | 4000 | 114,3 | 500 | 340/270/220 | 280 | 192 | 136 |
