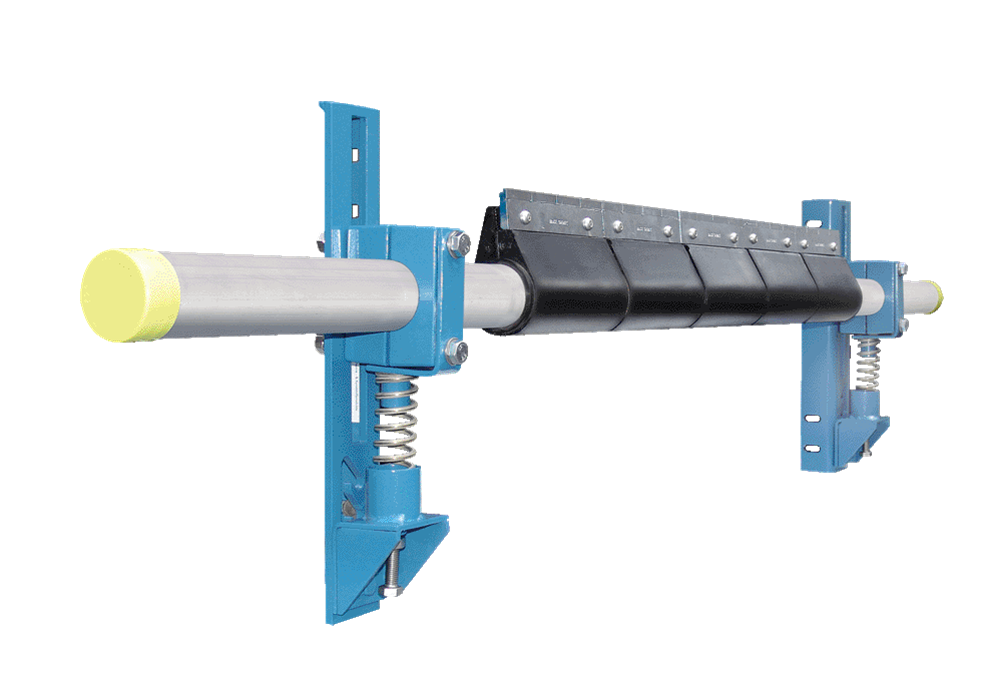

HCC Under-Pulley Cleaner
HCC Under-Pulley-Cleaner
The HCC Under Pulley Cleaner was essentially developed for flexible, gentle cleaning of soiled conveyor belts, including for extremely installation conditions with limited space. The system is suitable due to its very compact design and assembly for a variety of conveyor belt conditions, operational situations and terms of conveyance. Coupled with a very slim design allows the HCC scraper to solve the problems of self-contamination much better, especially strong material build-up on the cleaning decvice in very wet and sticky bulk materials. HCC cleaners fulfill tasks in conveyor belt systems with extreme contamination and materials with special tendency to build up, e.g. gypsum, bauxite, sinter.
The special characteristics of the HCC - belt cleaner system at a glance:
System recommendation/adapted for: - low and strong material deposits/contamination - belt speed ≤ 3 m/s - for sticky materials - space-critical mounting conditions

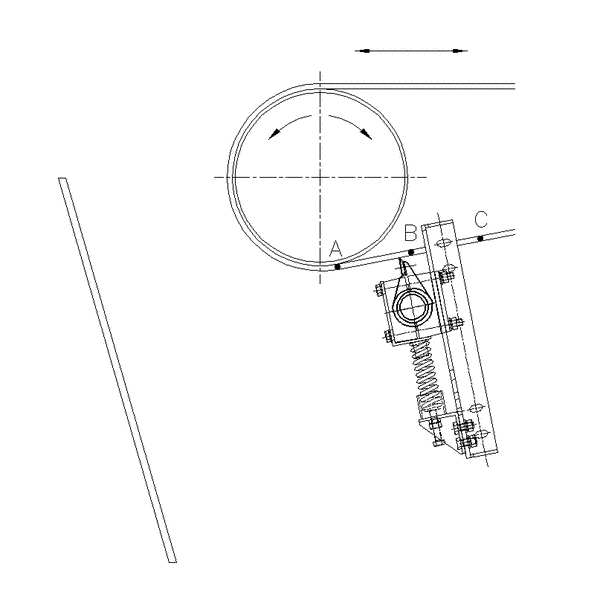

HCC scrapers are placed in the lower belt directly behind the discharge drum. The best mounting position is the position B (approximately 120-150 mm from A, where the conveyor belt leaves the contact with the drums), tighten and vibration-free belt guide provided.
Use our xeperience, especially when space is restricted and critical, sicky bulk material massive cleaning problems prepare, with varying materials, seasonal changes in material consistency, etc.

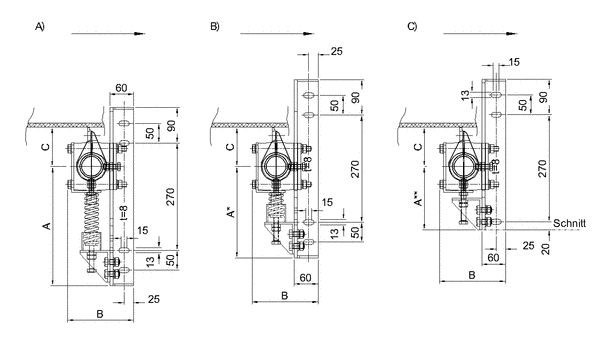

Measure A (installation variant A) when the springs are not under tension and without dead load/spring preload; standard with pressure spring (L=130 m); Measure A* (installation variant B); execution with pressure spring (L=60 mm); Measure A** (installation variant C) without pressure spring.
