HCM Under-Pulley-Cleanerr
for reversible / non-reversible belt operation
HCM Under-Pulley-Cleaner HCM-2
Based on the models HCM-1 and HCM-2 has arisen following the HCM-3 is a highly robust base scraper for transport situations with strong material build-ups on the conveyor belt and high loads . The system advertises itself because of its solid and robust details for high belt speeds. The devices are functionally designed, slim and streamlined . HCM cleaners were essentially designed as reversing scrapers. Their position is 90° to the belt surface. Because of the design must Hanse belt cleaners, which are not positioned at the discharge side, are not folded at the reverse side.
The special properties of the HCM cleaner system at a glance:
System recommendation/adapted for:
- medium and strong material deposits/contamination- higher belt speeds > 5 m/s- Installation conditions with greater ground clearance

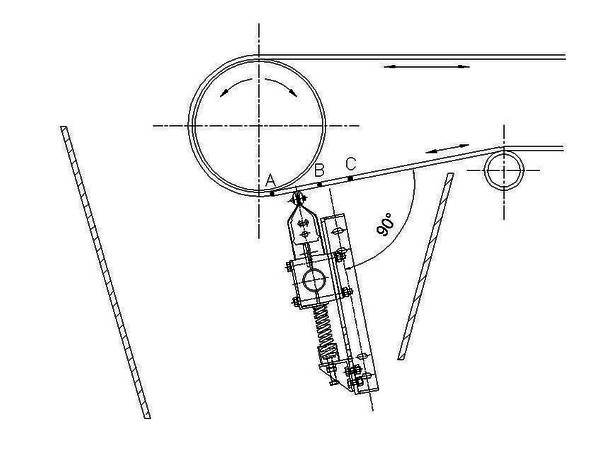

HCM-3 scrapers are placed in the lower belt directly behind the discharge drum. The best mounting position is the position B (approximately 120-150 mm from A, where the conveyor belt leaves the contact with the drums), tighten and vibration-free belt guide provided.
Use our xeperience, especially when space is restricted and critical, sicky bulk material massive cleaning problems prepare, with varying materials, seasonal changes in material consistency, etc.

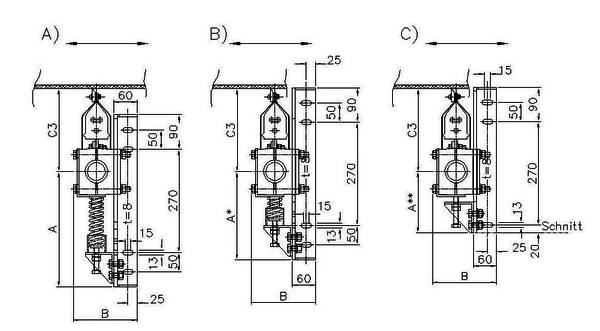

Measure A (installation variant A) when the springs are not under tension and without dead load/spring preload; standard with pressure spring (L=130 m); Measure A* (installation variant B); execution with pressure spring (L=60 mm); Measure A** (installation variant C) without pressure spring
