Hanse Chemie been standing for quality and reliability for 48 years, see for yourself!

ALO  HARD CERAMICS offers a variety of applications and maximum wear protection with extreme lifetime. The flexible, adaptable and easy to install wear-mat systems are in use worldwide.

ALO HARD CERAMICS is a multiple-resistant than, for example, steel or polymer plastics, and protects your installation in critical system areas. This excellent and sustainable effective wear protection against abrasive materials such as coal, coke, slag, ore, sinter, ash, glass, quartz, cement, etc. helps to reduce your maintenance cost are enormous.

ALO HARD CERAMICS provide a reliable long-term protection and optimize your construction. Hanse Special Ceramics for highly stressed plants Significant reduction in maintenance costs Reliable long-lasting protection against abrasion High corrosion resistance Thorough and experienced technical, wear-related advice secures its excellent operational improvements that can be reached with our specially developed for this industrial ceramic.

Delivery program:

  • Large, flexible 1.5 to 25 mm thick mats
  • Industrial ceramic shapeds parts according to drawing
  • Panele systems up to 50 mm thickness

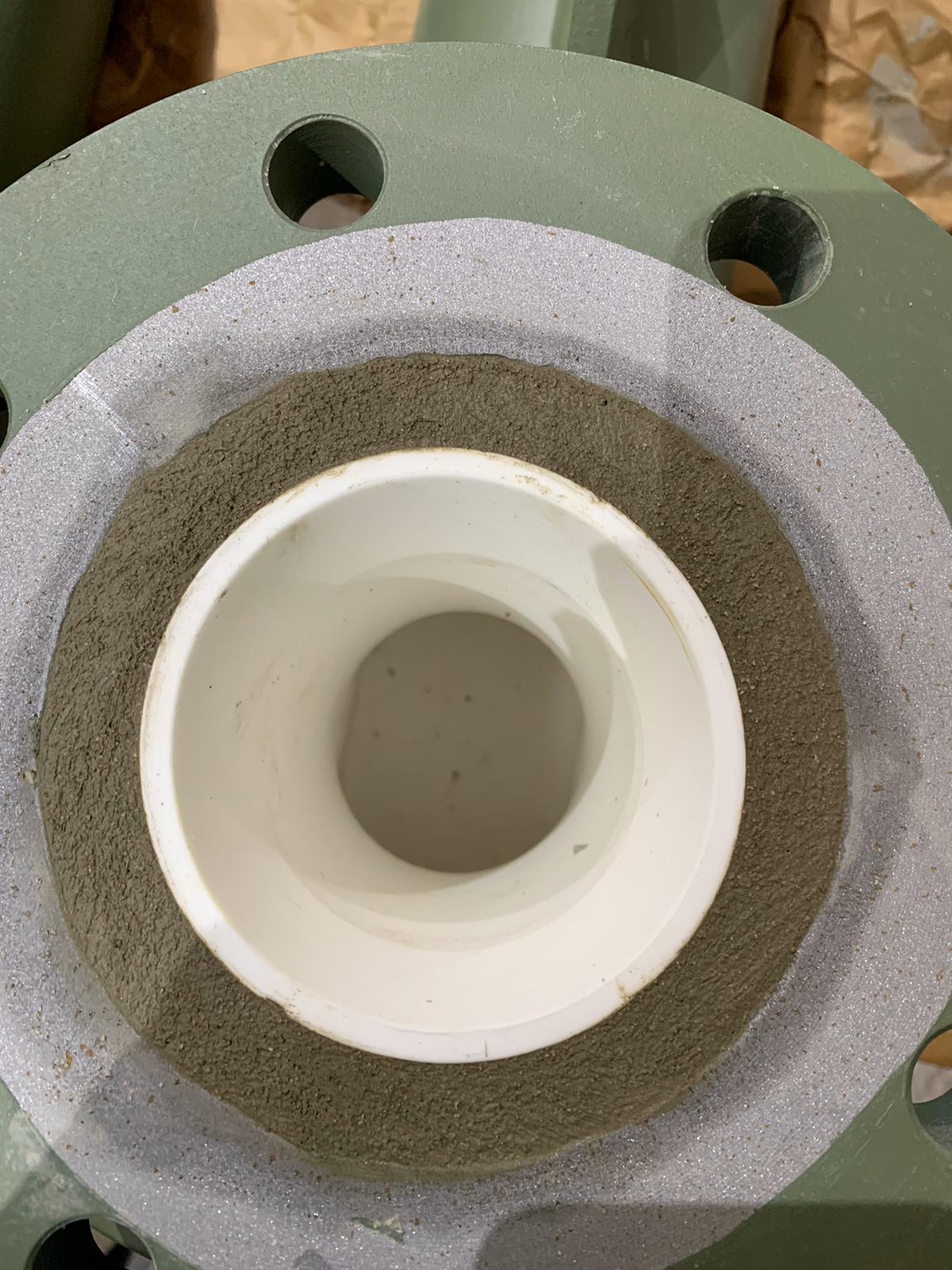

  • Pipes and bends with ceramic inner lining
  • Special designs (eg, ceramic steel cassettes)
  • Ceramic lined pulley protection laggings
  • Installations and cut to specifications
  • Adhesive systems suitabe for the particular application
Technical Information

ALO Hard Ceramics
User-friendly system solution - even for self-installation.

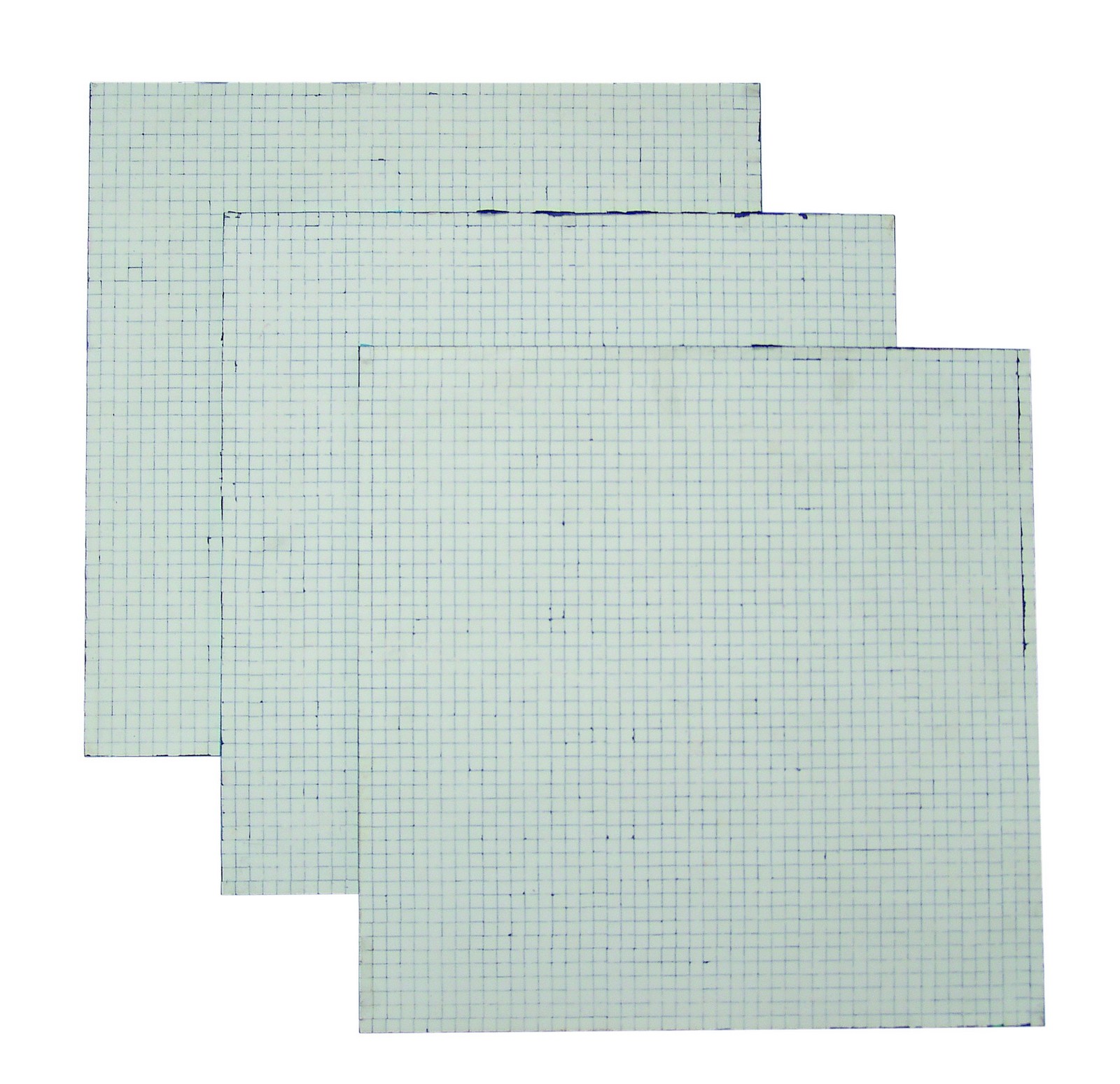

Rubberized mats

Not rubberized mats

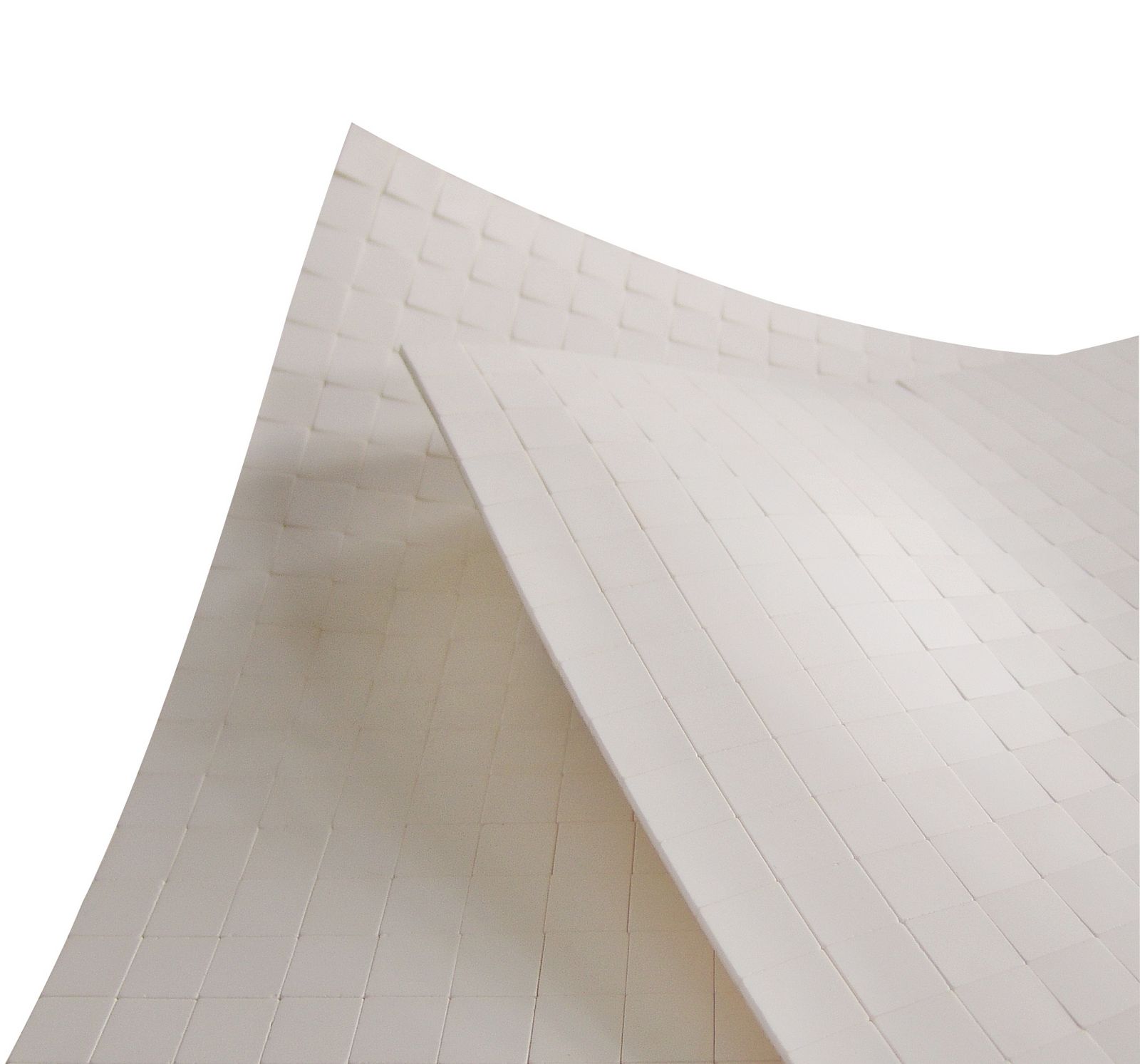

Mat systems

rubberized

  • With flexible, shock-absorbing rubber backing
  • After bonding ready for immediate use
    Versatile usable even for large areas
  • For metallic surfaces, flat, concave and convex laying
  • Standard application for permanent temperatur up t max. approx. +60 °C (temperature resistant special designs with special rubber grades on request)

not rubberized

  • Large mat laying and smallest grid cutting, without offcut and loss
  • Flat, concave and convex laying
  • For temperatures up to max. approx. +260°C by means special adhesür Temperaturbereiche bis max. ca. +260°C
Mat designs

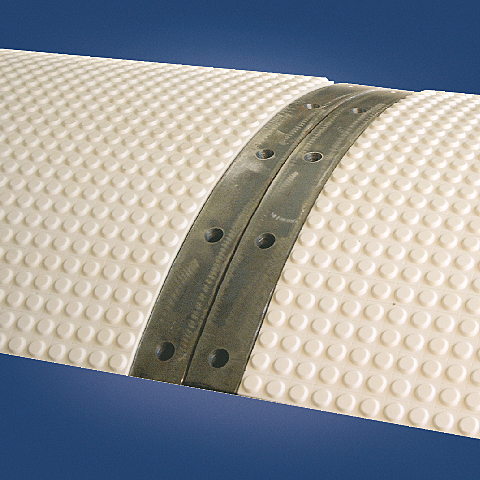

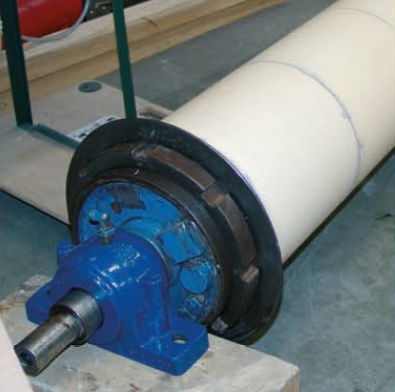

Pulley protection laggings, truncated-cone

Ceramic pulley protection systems achieve enormous lifetime.

Hanse pulley protection laggings consist of a highly industrial A2O3-studded protection profile, which is connected with an optional shock-absorbing and flexible rubber backing layer (hot vulcanised).
The ceramic laggings produce significantly better friction coefficients on heavily soiled, wet and muddy drums

Mat designs

Elongation and impact-elastic impact wear linings

The advantage of this coating is that it combines the elasticity of rubber of rubber with the high hardness of ceramic. The wear protection/drum friction lining consists of a rubber lining with hot-vulcanized vulcanized ceramic balls. The lining is extremely resistant, especially to impact.

As standard, the linings are manufactured in the form of mats of size 500x500 mm and variants of different thickness.

Mat designs

Telephone contact

Do you have any further questions or would you like some professional advice?

 We look forward to your call!

call us

Mail request

You are very welcome to send us an inquiry by e-mail.

We are looking forward to your inquiry!


Mail request

Mat designs / standard variants

Type designation Mat dimensions [ca. mm] Ceramic dimensions [ca. mm] Rubber carrier with contact base Weight [kg/m²] Connection to substrate
HCSS-Mini500x500x1,510x10x1,562K-​glue/1K-​glue
HCSG-Mini500x500x410x10x1,5ca. 2 mm82K-​rubber glue
HCSS500x500x310x10x3112K-​glue/1K-​glue
HCSG500x500x510x10x3ca. 2 mm132K-​rubber glue
HCF500x500x420x20x4142K-​glue/1K-​glue
HCG500x500x820x20x4ca. 4 mm192K-​rubber glue
HCMF500x500x1020x20x10362K-​glue/1K-​glue
HCMG500x500x1420x20x10ca. 4 mm412K-​rubber glue
HCHF500x500x1525x25x15552K-​glue/1K-​glue
HCHG500x500x2025x25x15ca. 5 mm602K-​glue/1K-​glue2K-​rubber glue

Mat designs / standard coverings

Type designationMats dimensions [ca. mm] Ceramic dimensions [ca. mm] Knob height [ca. mm] Rubber carrier with contact base Weight [kg/m²] Connection to the substrate
HCRS-TB500x500x715x15x73182K-glue/1K-glue
HCR-TB500x500x920x20x94242K-glue/1K-glue
HCRGS-TB500x500x1115x15x73ca. 4 mm232K-rubber glue
HCRG-TB500x500x1320x20x94ca. 4 mm292K-rubber glue

Technical data - Elastic and shock-elastic impact wear linings

Type designationMats dimensions [ca. mm] Ceramic ball ø [ca. mm]Weight [kg/m²] Connection to the substrate
HC-TB K5500x500x105182K-​rubber glue
HC-TB 10500x500x2010262K-​rubber glue
