HCD-II "DUAL" Under-Pulley cleaner - here: HCD-II(6x200/12x200) for belt width 1200 mm, design with tubular internal reinforcement

In the HCD II-Dual variant the system consists 2 by 180° image staggered rows with screwed identcal, elastomeric cleaner moduls.
The HCD II-Dual variant is particularly well suited for conveyor belts, which over a long period of continuous operation without any major downtime for maintenance, cleaning or maintenance operations must operate continuously.
In the contex of a short stoppage the belt cleaner can quickly and easily be rotated about ist support tube axis, whereby a time-consuming maintenance is eliminated. When fitted with reinforced hard metal cleaner lamellas enormos lifetme is achieved. This means, that in accordance with long maintenance intervalscan be interpreted.

The special properties of the HCD-II cleaner system at a glance:

  • turning variation
  • technical variants and customizable modules for various installation situations and belt widths
  • no fold down in reverse mode
  • load flexible, gentle belt cleaning
  • compact, stable design
  • easy to install and use
  • pressure flexible adjusting unit
  • no costly spare parts inventory

System recommendation/adapted for:

- medium and strong material deposits/contamination
- higher belt speeds ≤ 5 m/s
- Installation in cramped situations

Mounting position HCD II

HCD II scrapers are  placed in the lower belt directly behind the discharge drum. The best mounting position is the position B (approximately 120-150 mm from A, where the conveyor belt leaves the contact with the drums), tighten and vibration-free belt guide provided.

Use our xeperience, especially when space is restricted and critical, sicky bulk material massive cleaning problems prepare, with varying materials, seasonal changes in material consistency, etc.

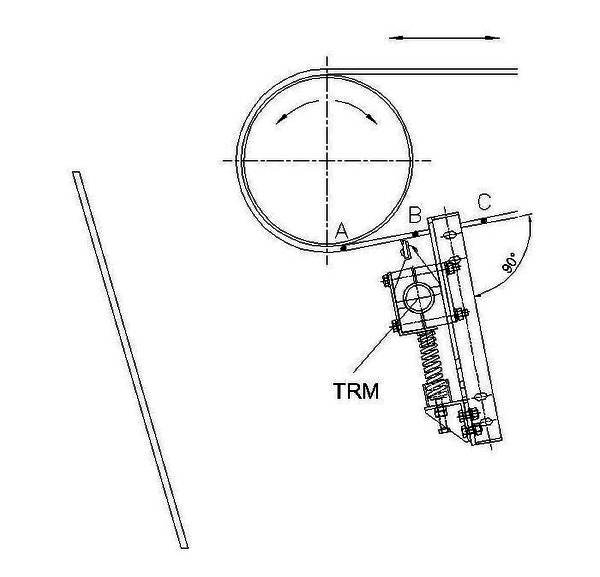

System sketch HCD II (Variant: Under-Pulley cleaner)

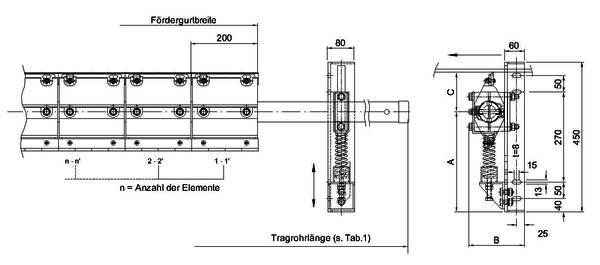

Installation dimensions HCD II

Measure A (installation variant A) when the springs are not under tension and without dead load/spring preload; standard with pressure spring (L=130 m); Measure A* (installation variant B); execution with pressure spring (L=60 mm); Measure A** (installation variant C) without pressure spring.

Installations dimensions/weight overview

Belt width (mm) QuantityxWidth of belt cleaner lamellas (mm) Standard support tube-length (mm) support tube-Ø
D(mm)
A(mm)/
A*(mm)/
A**(mm)
B(mm)C(mm) Weight tot. without Autom.1 HCD II (kg)
400/500
HCD II: 4x200150060,3290/220/17017012016
600/500HCD II: 6x200160060,3290/220/17017012019
800HCD II: 8x200180060,3290/220/17017012023
1000HCD II: 10x200200060,3290/220/17017012027
1200HCD II: 12x200220060,3290/220/17017012036
1400HCD II: 14x200240060,3290/220/17017012041
1600HCD II: 16x200280060,3290/220/17017012048
1800HCD II: 18x200300060,3290/220/17017012052
2000HCD II: 20x200350060,3290/220/17017012059
2200HCD II: 22x200350060,3290/220/17017012063
2400HCD II: 24x200370060,3290/220/17017012068

1Weigth/automatic adusting unit, complete with left- and rright-sided mounting bracket: recessed version A:12,5kg/ B:12,3kg/ C:11,8kg
