HCD-I Under-Pulley cleaner

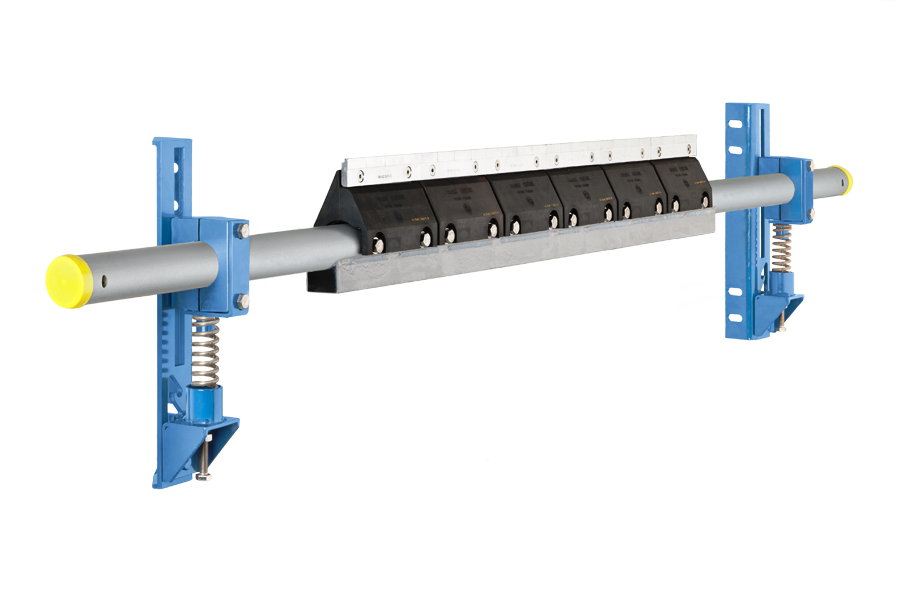

HCD-I Under-Pulley cleaner - here: HCD-I(6x200) for belt width 1200 mm, Version with U-profile pipe reinforcement
The HCD-I system is suitable due to its very compact design and assembly for a variety of conveyor belt system conditions, operating and contamination situations. Cupled with a very slim design, the HCD-I belt cleaner solve the poblem of self-contamination of the cleaning device or buildup on the cleaning device, in very wet and sticky feed materials much better.
The HCD -I variant is used essentially for the flexible and gentle belt cleaning of highly contaminated conveyor belts in extremely cramped installation situations.
The special properties of the HCD-I cleaner system at a glance:
System recommendation/adapted for: - medium and strong material deposits/contamination - higher belt speeds ≤ 5 m/s - Installation in cramped situations

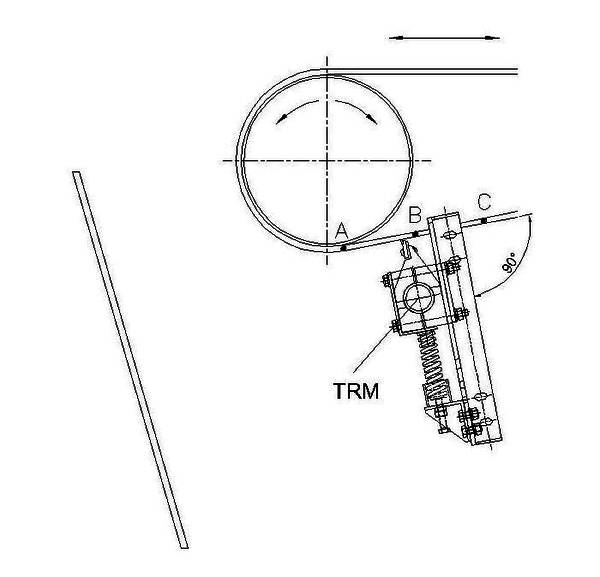

HCD I scrapers are placed in the lower belt directly behind the discharge drum. The best mounting position is the position B (approximately 120-150 mm from A, where the conveyor belt leaves the contact with the drums), tighten and vibration-free belt guide provided.
Use our experience, especially when space is restricted and critical, sicky bulk material massive cleaning problems prepare, with varying materials, seasonal changes in material consistency, etc.

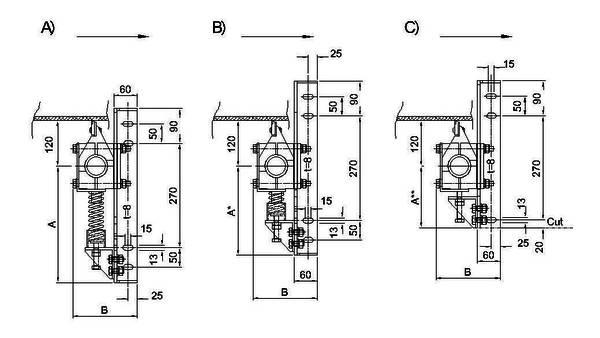

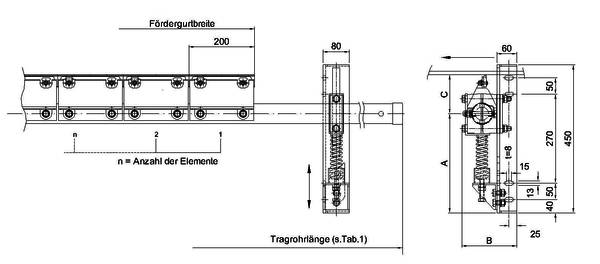

Measure A (installation variant A) when the springs are not under tension and without dead load/spring preload; standard with pressure spring (L=130 m); Measure A* (installation variant B); execution with pressure spring (L=60 mm); Measure A** (installation variant C) without pressure spring
1Weight/Automatic ajusting unit, complete with left- and right-sided mounting bracket: recessed version A: 12,5 kg / B: 12,3 kg / C: 11,8 kg
